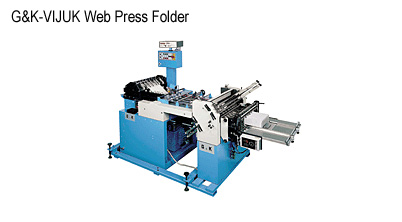

Patented specialty in-line folder developed by G&K-Vijuk Intern. Corp. to attach to web presses (or other primary machines) for high speed direct mail operations.

The folder has all the fine features of the G&K-Vijuk V-14/V-18 Folders.



Predetermined Counter MK-450:

  • Digital display readout of batch counting and production speed by digital tachometer.
  • Controls the ejector magnet (kicker) that "kicks out" a finished piece at a preset number to indicate batches of finished pieces.
  • 0 to 10-second delay setting can be used to pause the feeding process between batches.
  • Dual start buttons guard against accidental starts while setting up.
  • Stop buttons for deactivating feeder cycle and emergency stops.
The SAF feeder table...
Built-in air channels in the side rails aerate and move the sheets across the register table, conveying them to the folding rollers in perfect registration.
G & K SAF Feeder register table...
Feed belt automatically centers when the side paper guides are adjusted to the paper width.
Anti-static stainless steel suface allows easy transport of paper.
An adjustable plate levels the feed edge of the paper to eliminate a source of jams.
The folder has all the fine features of the G&K-Vijuk V-14/V-18 Folders.

Chute (shingled) Delivery Unit S-350:
For finished sizes of more than 2-3/4" in height. Folded product is delivered shingled--one overlapping the other. It is built with friction belts and has a variable speed motor drive with a variable speed control.
Vertical (stacked) Delivery Unit:
For miniature work. The folded leaflets are stacked upright for easy collection. It has an independent motor drive and a built-in ejector magnet (kicker) which is controlled by the Predetermined Counter MK-450.
Three widths:
#KS-235: 9-1/4"
#KS-310: 12-1/4"
#KS-370: 14-5/8"





MODEL
FA/36
FA/45
Maximum sheet size 13" x 14" 17-3/4" x 24"
Minimum sheet size 6" x 8" 6" x 8"
Production speed 500 ft./min. 500 ft./min.
Electrical 220V, 3ø, 60 cycle 220V, 3ø, 60 cycle
Space requirements (L x W) 108" x 36" 108" x 43"

Special Requirements:
Press must have a dryer system and an alignment conveyor.
Digital display readout of batch counting and production speed by digital tachometer.
