MV-11 Single Knife Outsert System

OUTSERT SYSTEMS:

To view our brochure you must have Acrobat Reader. If you do not have a copy, you may download a FREE version from Adobe.

NOTE: You can enlarge this website on your screen by pressing the Ctrl and the +/= keys simultaneously.

Download Brochure

Exclusively G&K-Vijuk’s…
G&K-Vijuk patented outsert systems are for the production of RTA (right-turn-angle) cross-folded outserts. Outserts, which have become the standard for providing information in the pharmaceutical industry, are leaflets that are folded to a small size and secured to form closed leaflets which will not spring open during packaging operations or while affixed directly onto product containers.

Significant advantages for you and your customers…

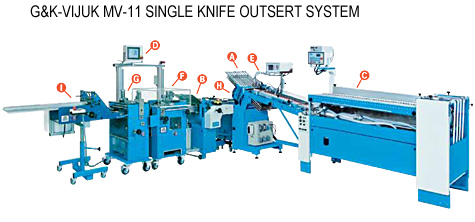

The MV-11 Single Knife System folds outserts with up to 110 panels as small as 1 1/ 8" x 1 1/ 8".
Outserts on average are 15% thinner than those folded on previous models, giving you savings on storage and shipping.
Thinner outserts are easier to handle—manually and mechanically.
Larger, thinner outserts will fit in existing packaging.

Tailored to fit your needs...
Designed to handle light-weight stock for pharmaceutical and miniature leaflet folding, Station I options are:
• G&K-Vijuk (GUK) FA 53 Folder (20 3/4"/ 53 cm) with 12, 14, or 16 plates.
• G&K-Vijuk (GUK) FA 43 Folder (17"/ 43 cm) with 12 plates. (The maximum number of panels a single knife-unit system will fold is 110. See Specifications to equip the system for upgrading in the future.)
Station II may be a 4-plate G&K-Vijuk (GUK) Folder, modified with special folding rollers, plates, and pressure roller to handle the thick, small-size leaflets.
The R6 Round-Pile Feeder is standard.

Modular design gives you production flexibility and efficiency…
This system is ideal for a company starting to produce outserts.
The MV-11 Single Knife Outsert System can be upgraded to an MV-11 Double Knife Outsert System or an MV-11 Triple Knife Outsert System with the addition of knife units and pressing units.

Also see G&K-Vijuk MV-11 Double Knife Outsert System
and G&K-Vijuk MV-11 Triple Knife Outsert System

For more information, fill out the information request form.

Download Brochure

R6 Round-Pile Feeder...

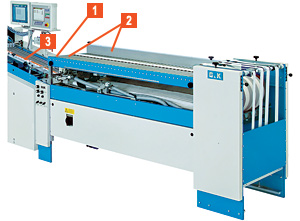

The continuous-load feeder handles sheets up to 40" in length. Long and difficult-to-feed sheets are transferred by the top-suction wheel (1) (shielded by a safety cover) aided by air blasts from the front and from ADJUSTABLE FLOATING BLOWERS (2) on each side of the pile.
3 ELECTRONIC DOUBLE-SHEET DETECTOR

FL2 Feeder

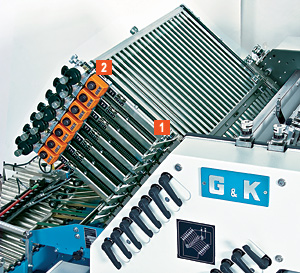

Suction heads lift the sheets at the REAR SEPARATING FEED SYSTEM (1). Air blasts aid the feeding of long or difficult-to-handle sheets.

2 A DRUM SUCTION INFEED WHEEL, shielded by a safety cover, transfers the paper toward the folding rollers.
The rear separating feed system lifts up and out of the way for easy loading.

Download Brochure

“Intelligent” self-teaching jam detection…

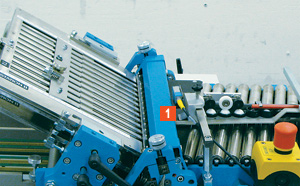

The ELECTRONIC JAM DETECTING SENSOR (1), one of many on the outsert system, is part of “intelligent,” self-teaching jam detection. Sensors throughout the system record the timing of sheet passage. If product does not arrive at a sensor point in the proper time, the operation preceding that point will shut down to prevent further jamming and minimize downtime.

FA 53 Folder touch-screen controllers…

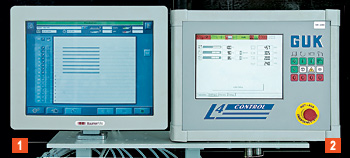

1 The hhs® CONTROLLER controls water scoring and glue application.
2 The L-4 CONTROL UNIT is used for setting up production speed, total, batch, and production counts, the double-sheet ejection system, and recording the sheet and fold lengths for the various monitoring devices.
Programmed jobs can be stored for recall.

Quick setup on the FA 53...

1 Quick caliper-set rollers.
Zero-makeready plates.
2 Folding length is set by digital dials.

FA 53 Folder double-sheet ejection system…

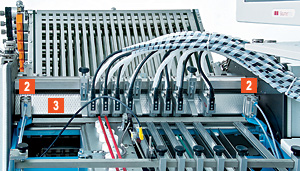

Production is not interrupted when double sheets are fed. The DOUBLE-SHEET DETECTOR (1) activates the air-opening cylinders (2) that open the gate (3) through which double sheets are ejected before they reach the folder. The system is not stopped.

Water scoring…

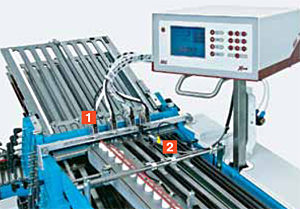

Accurate, tight folds are accomplished with the combination of water scoring (1) and rotary scoring.

Download Brochure

Optional hhs® equipment…

Bar code scanner
Glue verification
Missing print detection
Print verification

These may require different controllers.

Download Brochure

G&K-VIJUK MV-11 OUTSERT SYSTEMS SPECIFICATIONS*
MODEL	SINGLE KNIFE UNIT	DOUBLE KNIFE UNIT	TRIPLE KNIFE UNIT
Beginning size (WxL) G&K (GUK) FA 43** max sheet	17" x 40" (431 x 1016)	17" x 40" (431 x 1016)	n/a
min sheet	8" x 8" (204 x 204)	8" x 8" (204 x 204)	n/a
Beginning size (WxL) G&K (GUK) FA 53** max sheet	20 3⁄4" x 40" (527 x 1016)	20 3⁄4" x 40" (527 x 1016)	20 3⁄4" x 40" (527 x 1016)
min sheet	8" x 8" (204 x 204)	8" x 8" (204 x 204)	8" x 8" (204 x 204)
Finished leaflet (WxH) min sizes	1 1⁄8" x 1 1⁄8" (29 x 29) 2" x 1" (51 x 25)	1 1⁄8" x 1 1⁄8" (29 x 29) 2" x 1" (51 x 25)	1 1⁄8" x 1 1⁄8" (29 x 29) 2" x 1" (51 x 25)
max size	6" x 3" (152 x 76)	6" x 3" (152 x 76)	6" x 3" (152 x 76)
Maximum number of panels* 12-plate	110	130	182
14-plate**	110	150	210
16-plate**	110	170	238
Water score heads	4	8	4
Maximum cycle speed	14,000 cycles/hour ****	14,000 cycles/hour ****	14,000 cycles/hour ****
Electrical	230V, 3ø, 60 cycle	230V, 3ø, 60 cycle	230V, 3ø, 60 cycle
All specifications are based on using 27# paper on outsert systems with the R6 Round-Pile Feeder. Measurements in parentheses are in millimeters. Based on the primary folder. The G&K FA 43 has 12 plates. The G&K FA 53 may have 12, 14, or 16 plates. (The manufacturer is known as GUK in Europe.) RTA outserts with more than 90 panels must be produced using a 10- or a 14-panel configuration in the right-turn-angle section, depending on the model. ** Production speed depends on the finished folded size and number of panels.

FEATURES

STATION I

STATION I options:
• G&K-Vijuk (GUK) FA 53 Folder (20 3/4"/ 53 cm) with 12, 14, or 16 plates.
• G&K-Vijuk (GUK) FA 43 Folder (17"/ 43 cm) with 12 plates.

FEATURES

STATION II

STATION II is a 4-plate G&K-Vijuk (GUK) Folder, modified with special folding rollers, plates, and pressure roller to handle the thick, small-size leaflets.

FEATURES

R6 ROUND-PILE FEEDER

The R6 ROUND-PILE FEEDER is standard.

The continuous-load R6 ROUND-PILE FEEDER feeds sheets up to 40" in length. Long and difficult-to-feed sheets are transferred to the register table by the top-suction wheel shielded by a safety cover (1), aided by air blasts from the front and from adjustable floating blowers (2) on each side of the pile.

FEATURES

CONTROL PANEL (HMI)

The touch-screen, color-graphical Control Panel (HMI) controls all the functions of the G&K-Vijuk outsert section—the knife folder, pressing unit, and vertical stacker—controlling speed, alignment, counts, and jam detection.

FEATURES

KNIFE FOLDERS

The KNIFE FOLDER is technologically advanced for efficient and accurate high-speed outsert production, with added safety features.

For easier setup, DIGITAL DIALS provide quick references for new and repeat jobs.

Gluing was integrated for efficiency.

FEATURES

PRESSING UNITS

Heavy-duty PRESSING UNIT compresses the folded pieces as they leave the knife folding unit.

FEATURES

WATER SCORING

Accurate cross folds are accomplished with the combination of WATER SCORING (1) and rotary scoring.
2 The ELECTRONIC JAM DETECTING SENSOR, one of many on the outsert
system, is part of the “intelligent” self-teaching JAM DETECTION. Sensors throughout the system record the timing of sheet passage. If product does not arrive at a sensor point in the proper time, the operation preceding that point will shut down to prevent further jamming and minimize downtime.

FEATURES

Variable-Speed Transfer Unit

The VARIABLE-SPEED TRANSFER UNIT transports the paper from Station I to Station II.

Ensures accurate paper registration.

Has independent speed control.

FEATURES

Vertical-Stacking Delivery Unit

Improved to handle the speed and greater number of panels, the VERTICAL-STACKING DELIVERY UNIT stacks the folded outserts upright for easy, orderly collection.
An air-activated batch kicker staggers pieces to mark batches.
